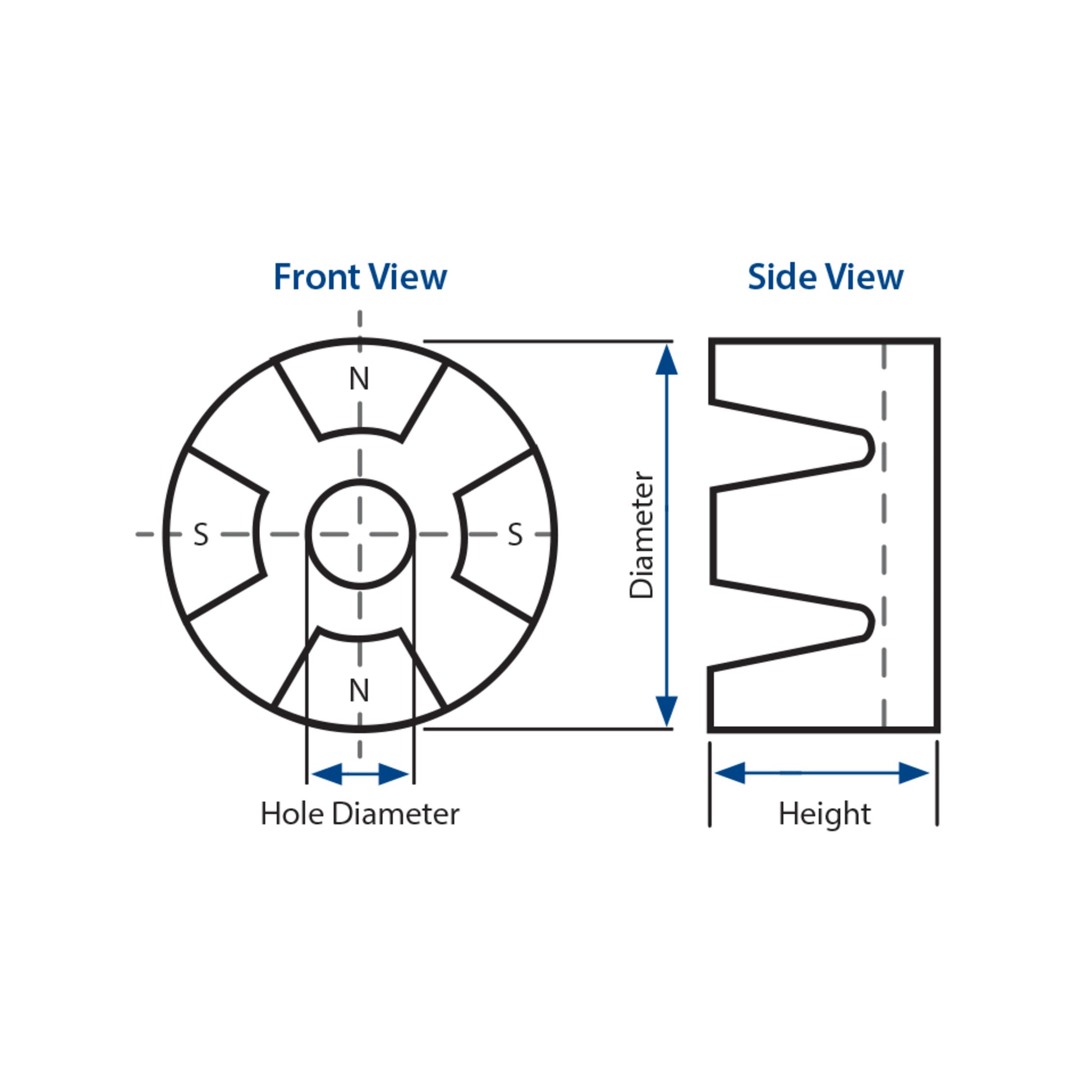

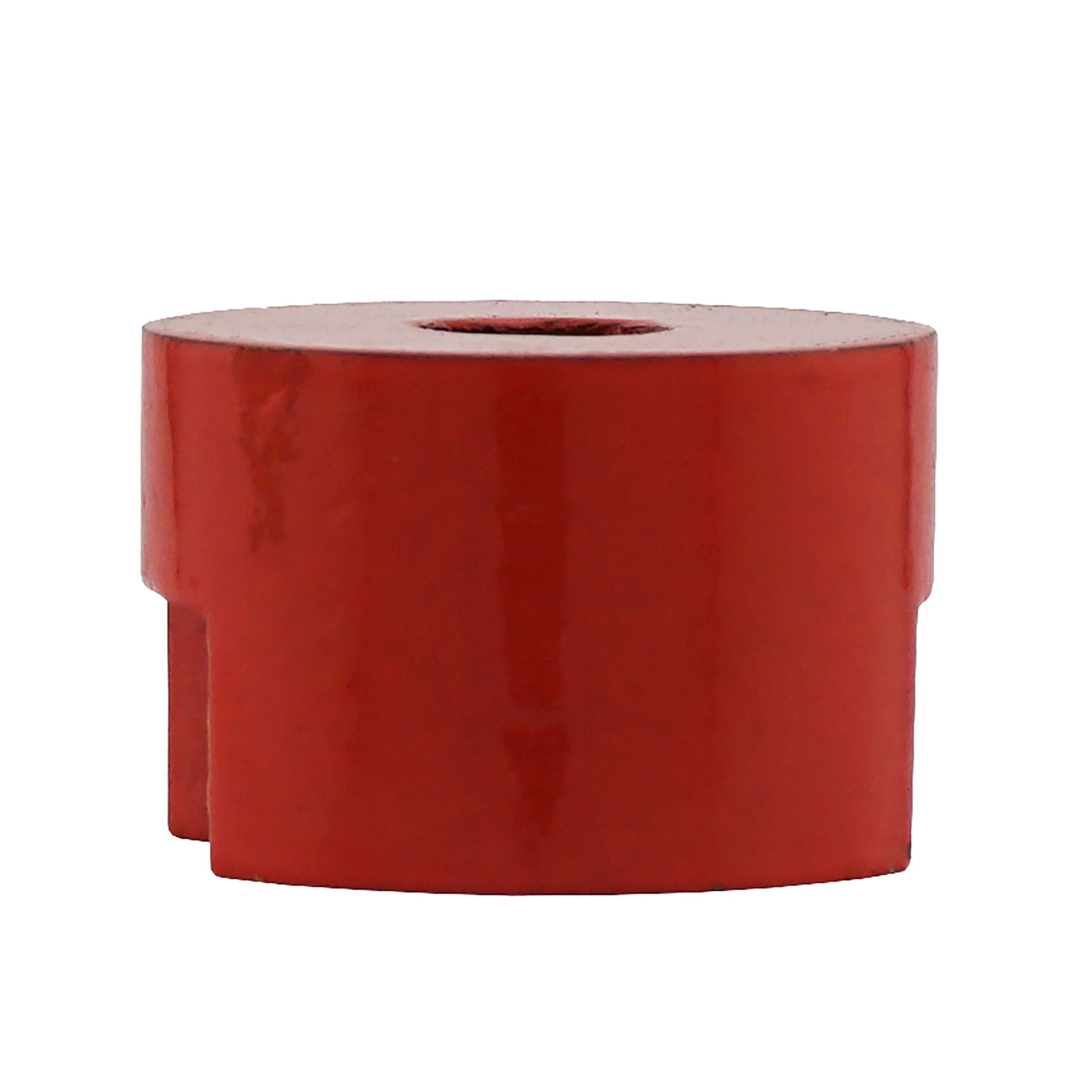

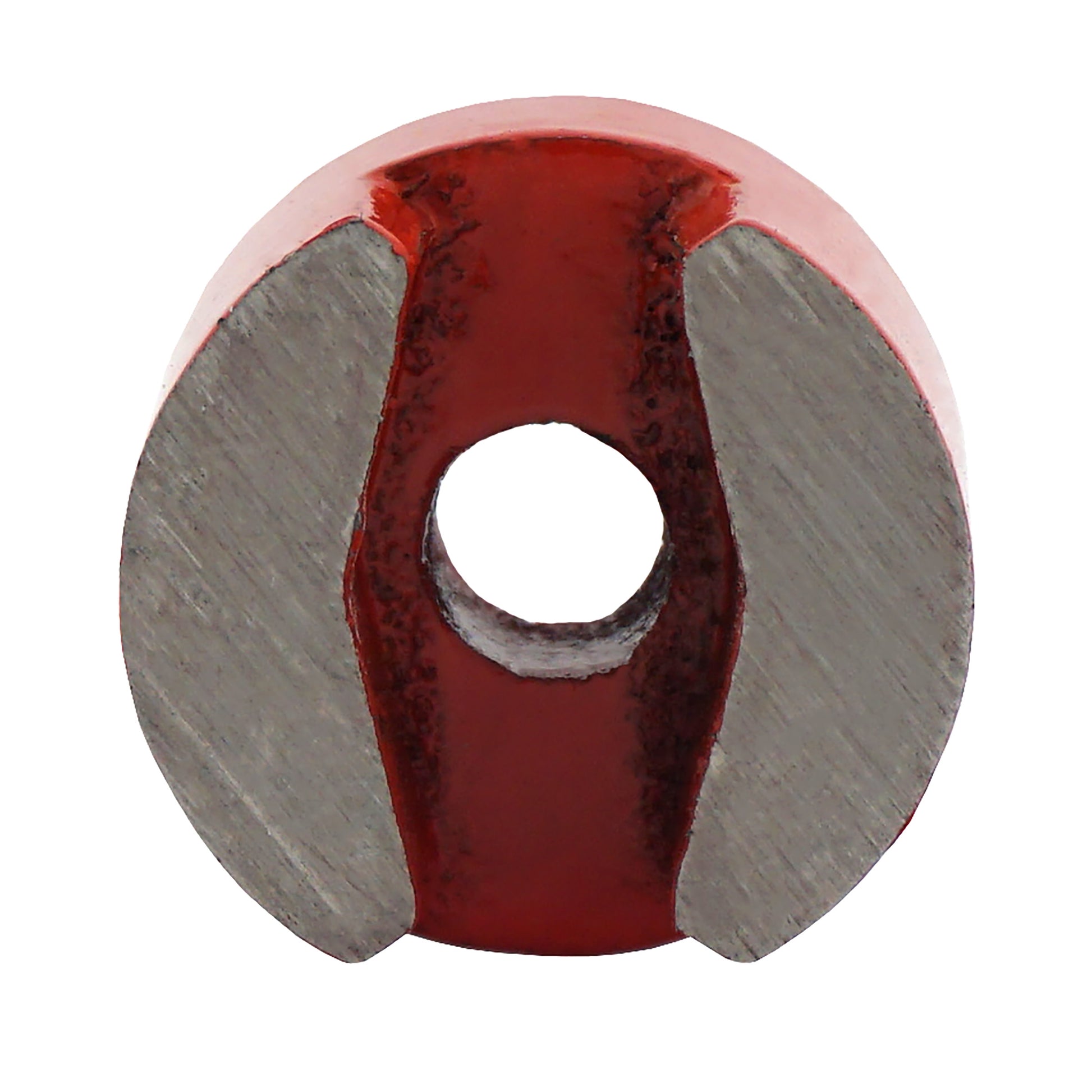

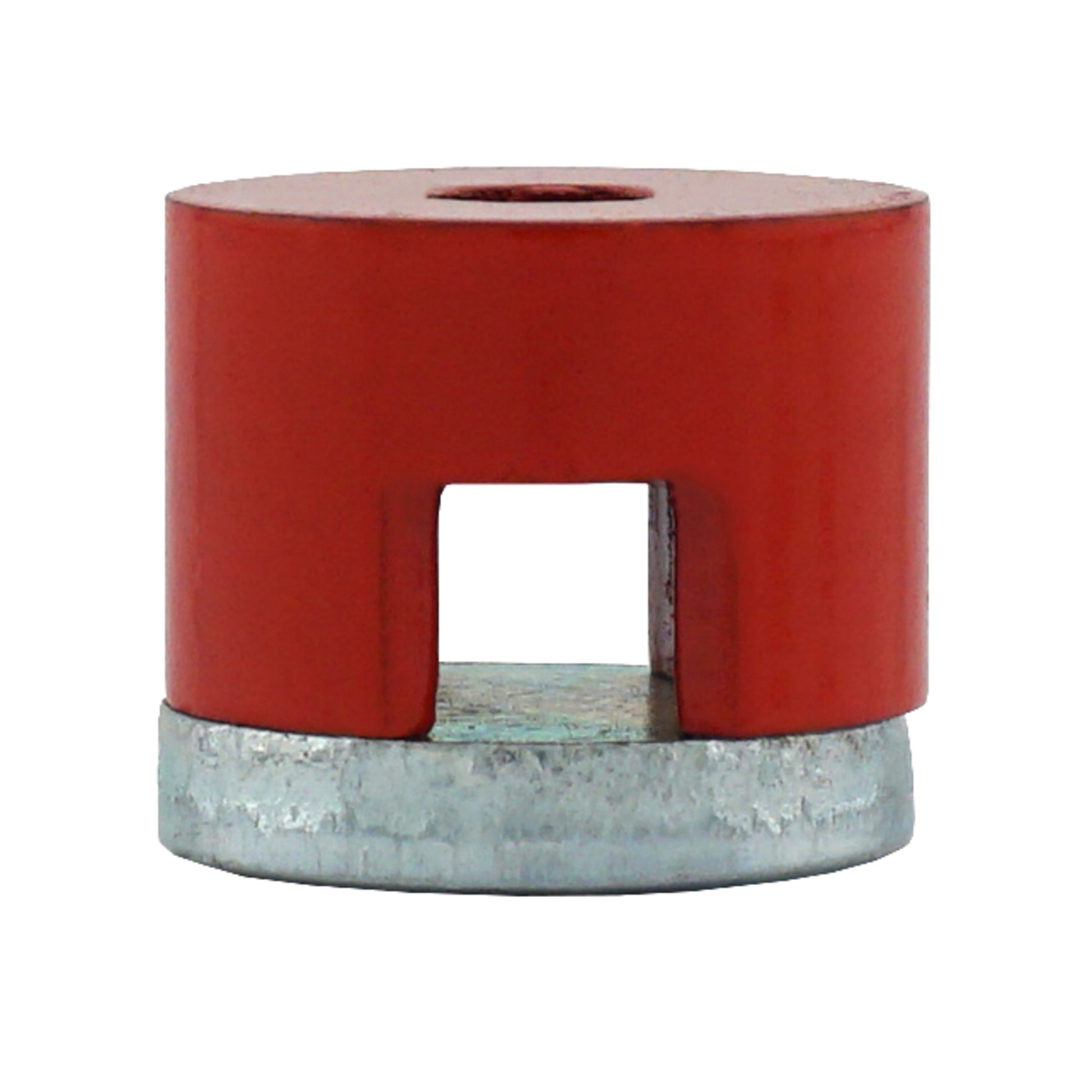

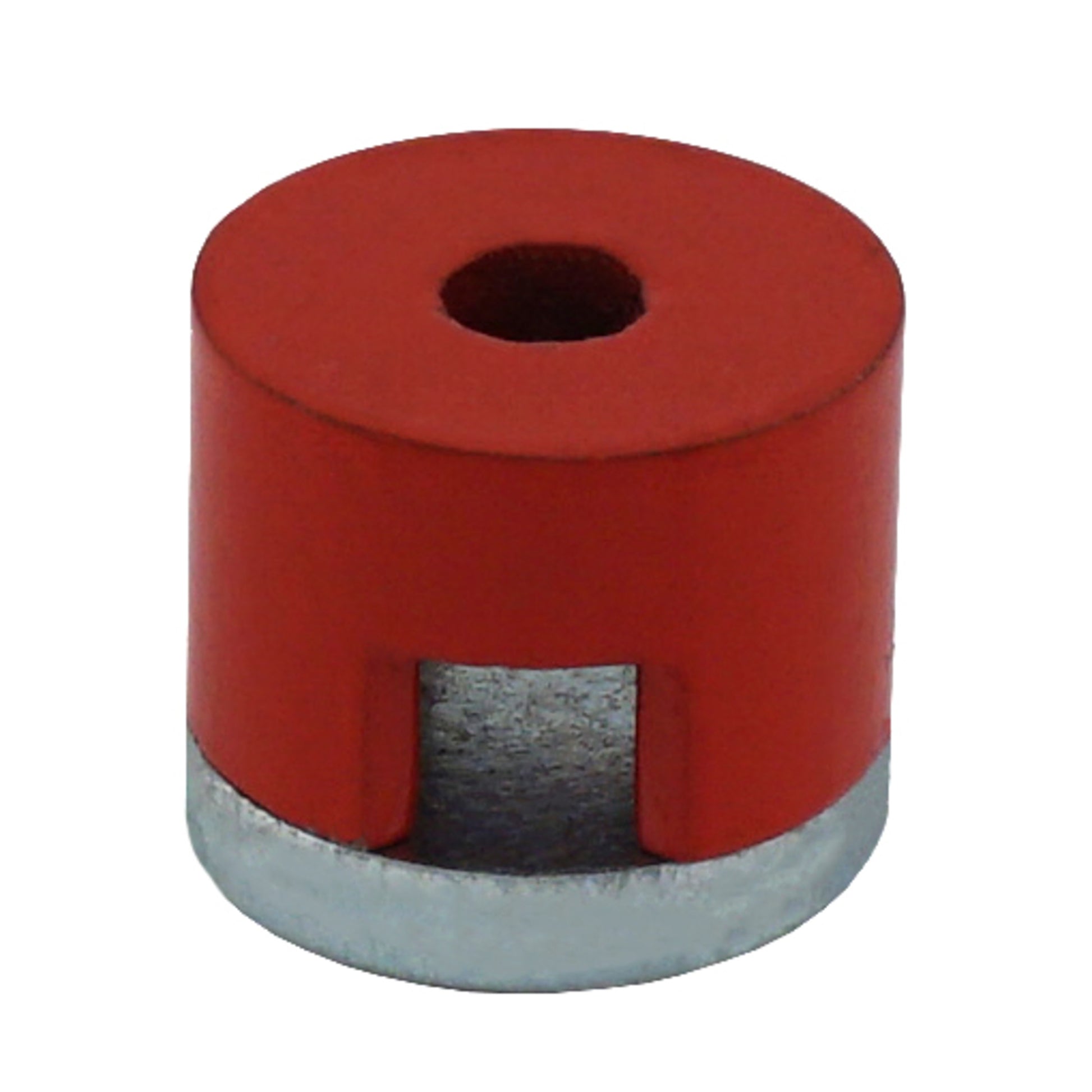

0.75" Dia. x 0.50" H w/ 0.218" Dia. hole¸ 4 lb. pull AH2822N
These Alnico 5 holding magnets can be used in a variety of industrial and consumer applications. Center hole allows for easy mounting. Each includes keeper to contain magnetic strength when not in use.
Use as work holding devices for wood cutting, sign making or other hobby applications
Ideal for school experiments and high heat applications

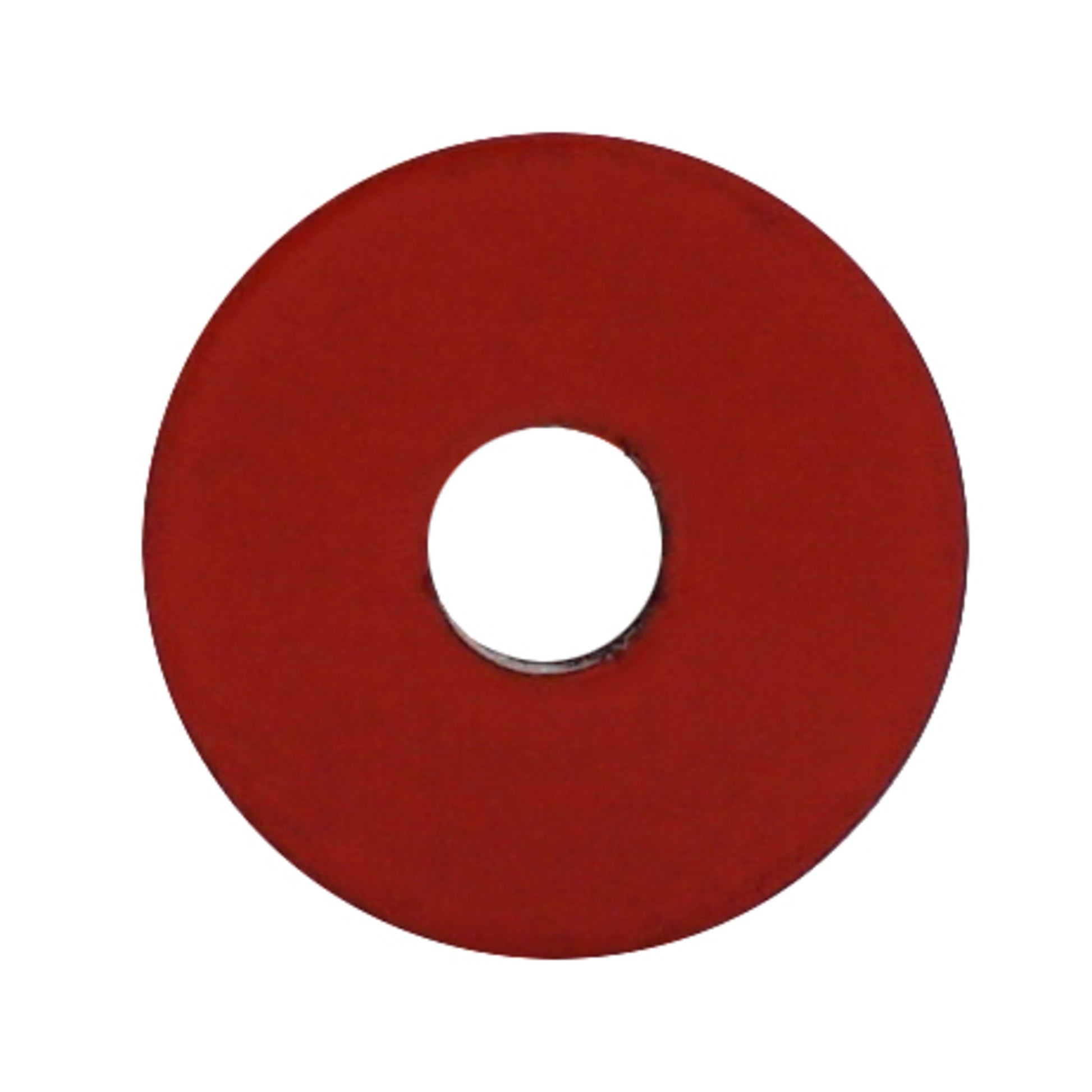

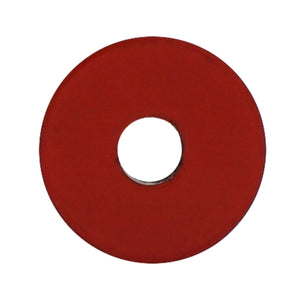

Includes a metal keeper to help retain magnetic power
Master Magnetics is your Magnet Source for Alnico Magnets. Check out our full collection here.
TECHNICAL SPECS
Finish/Plating
Enamel Paint
Grade
5
High-Grade
No
Hole Diameter (In.)
0.218
Magnet Material
Alnico
Magnet Shape
Custom
Magnetization Orientation
Through Thickness
MMI Part #
AH2822N
Multiple Poles
Yes
Number of Holes
1
Number of Items in Sell Pack
1
Number of Keepers
1
Number of Poles
2
Pole Width
0.7
Product Color
Red
Product Diameter (In.)
0.75
Product Height (In.)
0.5
Product Material
Painted Steel
Product Shape
Round
Product Thickness (In.)
0.27
Pull Rating
4
Tapped Hole
No
Thread Size
N/A
Weight (lbs)
0.0505
PRODUCT DESCRIPTION
0.75" Dia. x 0.50" H w/ 0.218" Dia. hole¸ 4 lb. pull AH2822N
These Alnico 5 holding magnets can be used in a variety of industrial and consumer applications. Center hole allows for easy mounting. Each includes keeper to contain magnetic strength when not in use.
Use as work holding devices for wood cutting, sign making or other hobby applications
Ideal for school experiments and high heat applications
Includes a metal keeper to help retain magnetic power
Master Magnetics is your Magnet Source for Alnico Magnets. Check out our full collection here.
